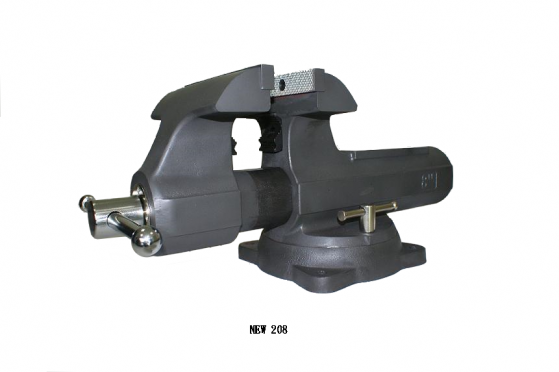

HEAVY DUTY DUCTILE IRON OCTAGONAL SUPPORTING VISE
HEAVY DUTY DUCTILE IRON TRADESMAN VISE
|
Item# |
Jaw Width |
Jaw Opening |
Throat Depth |
G.W/N.W |
|
|
2050 |
5” |
6” |
3 1/2” |
24/23 |
|
|
2060 |
6” |
8” |
3 3/4” |
28/27 |
|
|
2080 |
8” |
9” |
4 1/2” |
42.3/40.5 |
|
l No.I 227684 Taiwan patent.
l Made from 65,000psi ductile iron (FCD550)
l Support Rod Use octagonal circumference pipe.
l Fully enclosed spindle and guide screw nut.
l Large Anvil
l 360° swivel base with gear device.Easy access from all sides.
l Replaceable pipe jaw
Jipin machinery co., Ltd. Introduction to patent the advantages of vises.

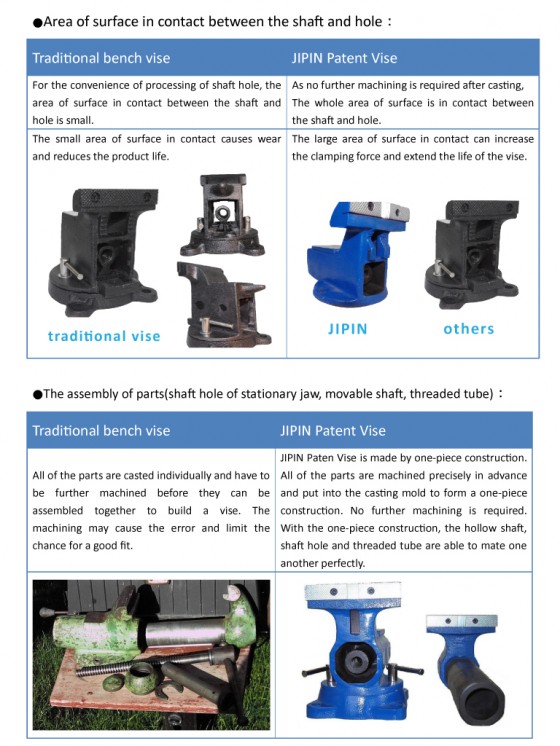

l The vises of the support rod and guide screw nut ontology perfusing prior processing, and fixed clamp、 active clamp with irrigation cast molding, so active clamp support shaft and a clamp support hole can be 100% fit, that is, bracing hole with fixed clamp pliers for supporting the activities of the type size equivalent axis, support from all sides, forming a support surface that Abrasion resistance and long service life.
l This product uses heavy duty ductile iron irrigation ， makes the entire cast, caliper, work piece clamping reset, can withstand the impact of external forces strong, guarantee of 10 years is not broken or deformed.

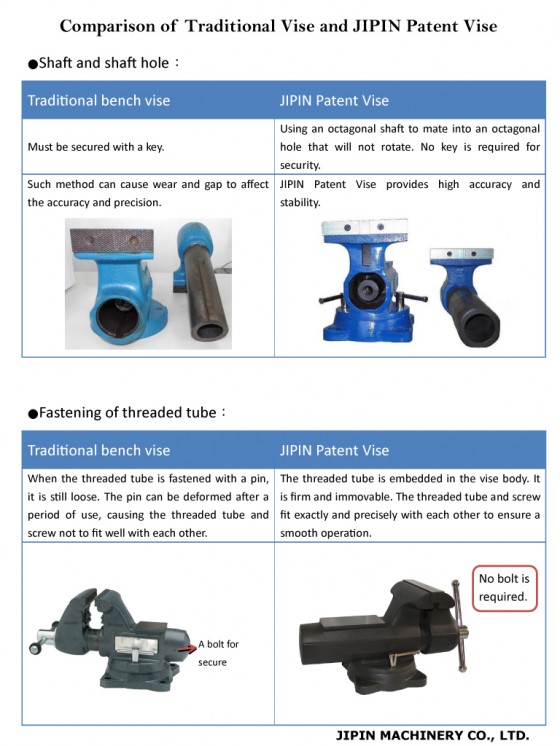

l This product is active clamp support shaft and fixed clamp support hole, guide screw nut ontology , etc using integrated molding, perfusing completes, shaft and bore no longer processing, zero processing error, shaft and bore to be able to work closely with, the clamping force Super, 6” HEAVY DUTY DUCTILE OCTAGONAL SUPPORTING VISE clamping force up to 4, 800KG.
l Fully enclosed spindle and guide screw nut.
l With 360 degrees of rotation device, base and teeth firmly fixed, can be fixed Calliper and base, suitable for all kinds of angles of the processing.
八角方圓鋼管支撐杆虎鉗
l 球墨鑄鐵灌鑄(FCD55)
l 使用壽命長
l 軸管使用八角方圓鋼管
l 密閉式的軸孔及導螺桿螺母
l 大型鉆座
l 底座加齒盤固定具360度旋轉功能
吉品機械有限公司專利虎鉗之優點簡介
l 本虎鉗之支撐杆與導螺桿螺母本體係灌鑄前事先加工，再與固定鉗、活動鉗一起灌鑄成型，所以活動鉗支撐軸和固定鉗支撐軸孔可以百分之百密合，即固定鉗支撐軸孔隨活動鉗支撐軸的型態尺寸等同配合，支撐點來自於四面八方，形成支撐面，耐磨耗且使用壽命長。
l 本產品採用高級球墨鑄鐵灌鑄〈 FCD55 >，使整個鉗體夾置工作物時，可以承受外力強大的撞擊，保証10年不會斷裂或變形。
l 本產品活動鉗支撐軸和固定鉗支撐軸孔、導螺桿螺母本體等採用一體成型，灌鑄完成後，軸與軸孔不再加工，零加工誤差，因軸與軸孔能緊密配合，故夾緊力超強。
l 密閉式的軸孔及導螺桿螺母。
l 具有360度之轉動裝置，底座加齒盤固定，可以牢牢的將鉗體和底座固定，適合各種角度之加工。
本產品係本公司以特殊之方式加工生產，並獲得中華民國發明專利，不但能強化品質，並能延長產品使用之壽命。
